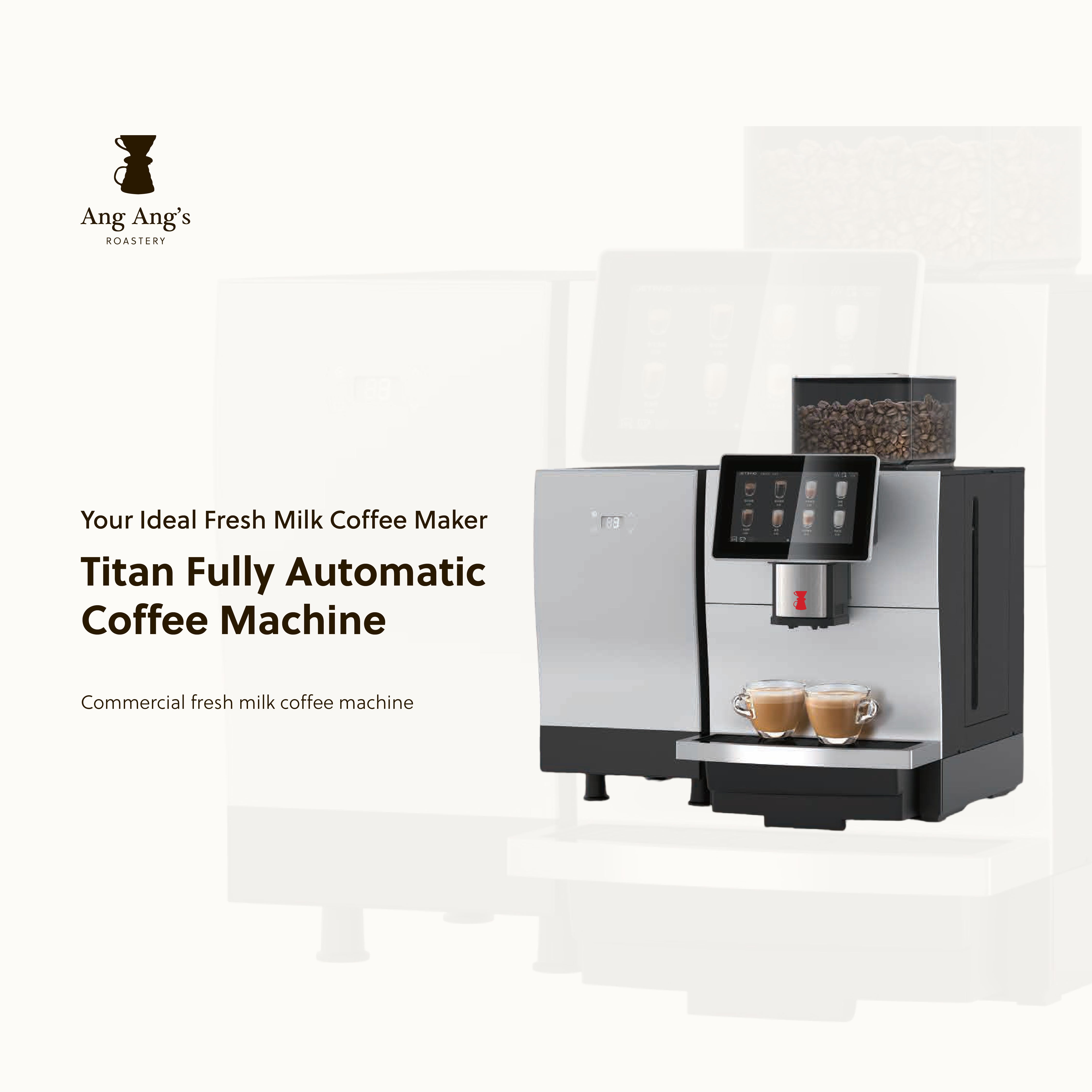

TITAN Commercial Fully Automatic Coffee Machine

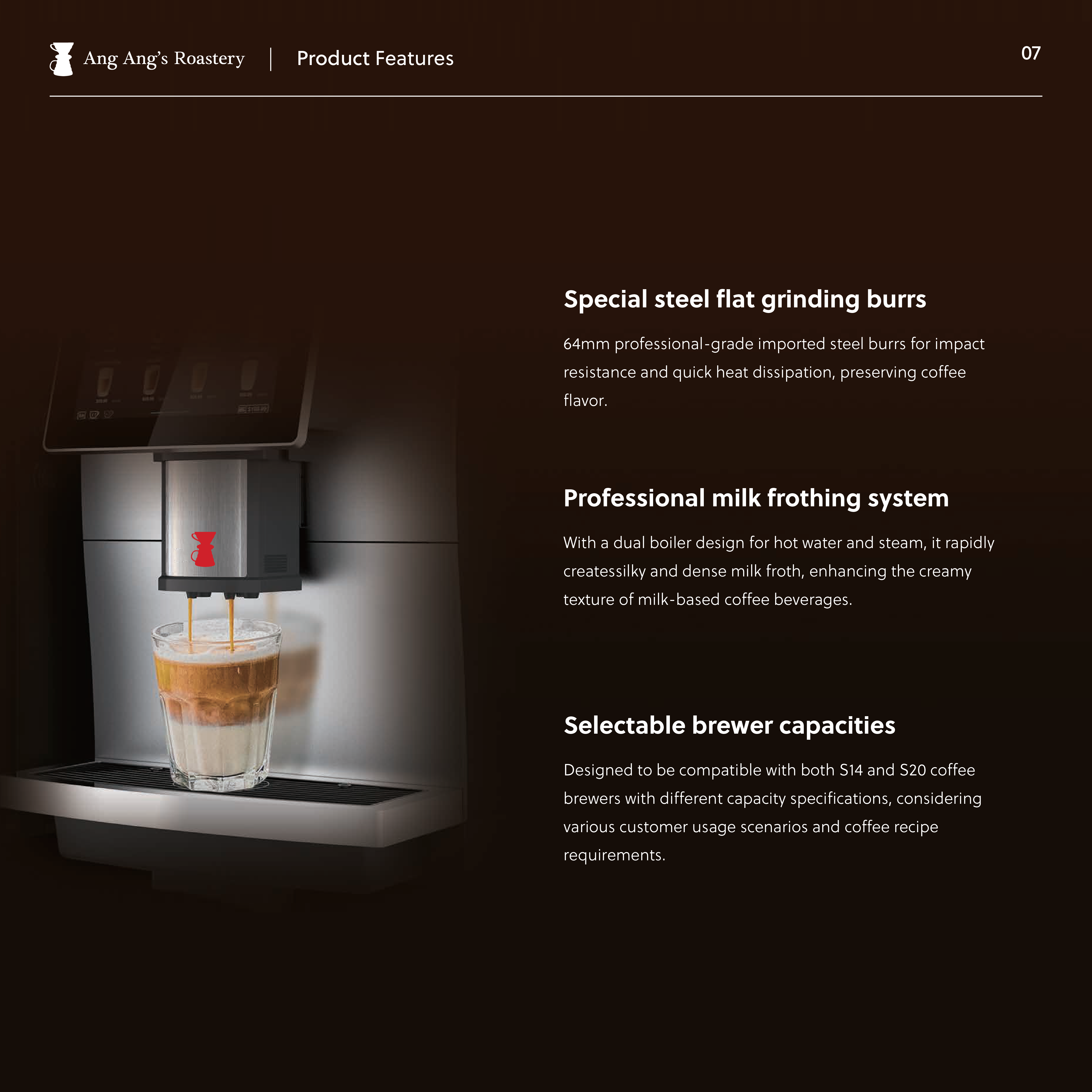

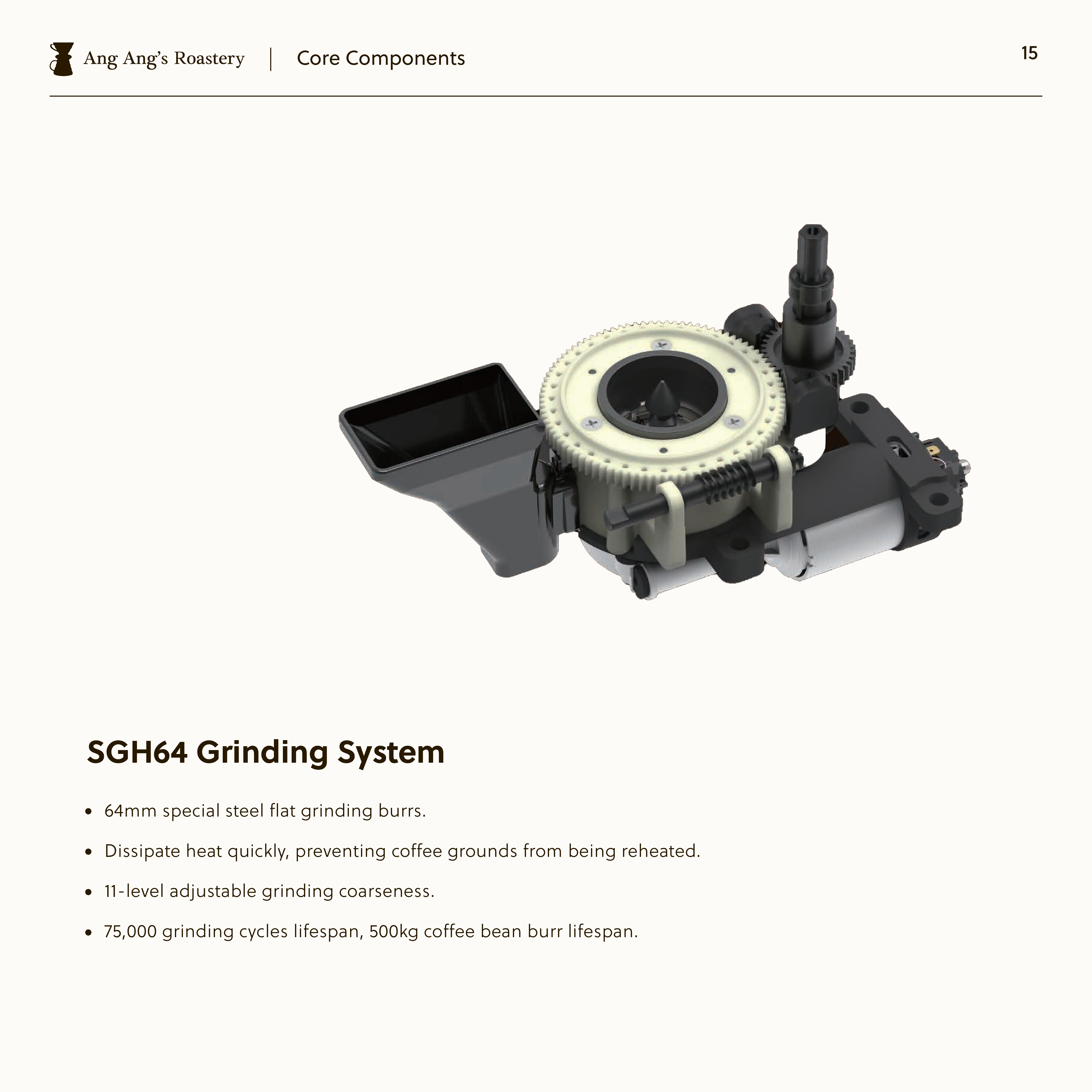

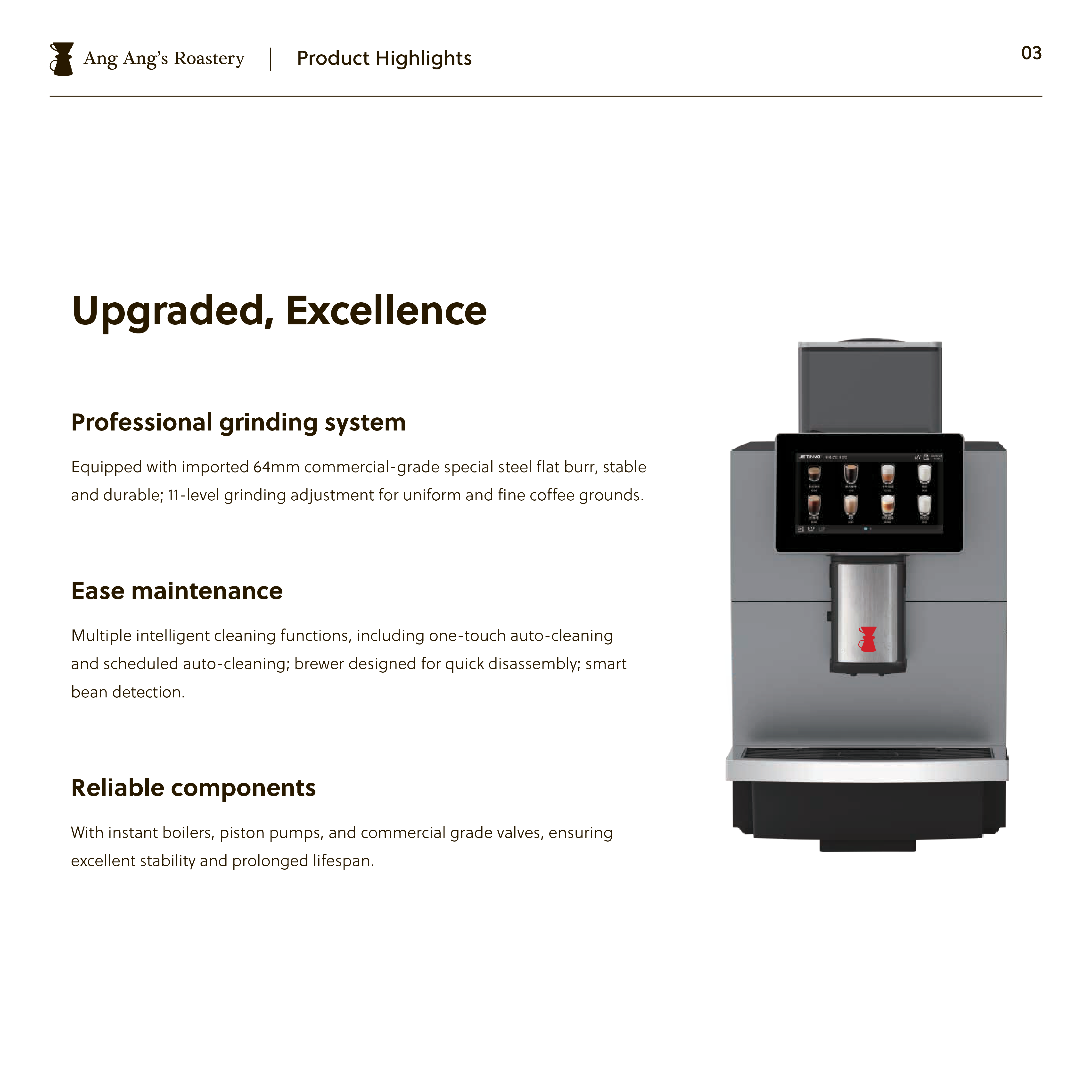

Commercial-Grade 64mm Steel Flat Burrs
Sharp, durable, and consistent. 11-level grind adjustment built for up to 75,000 cycles.

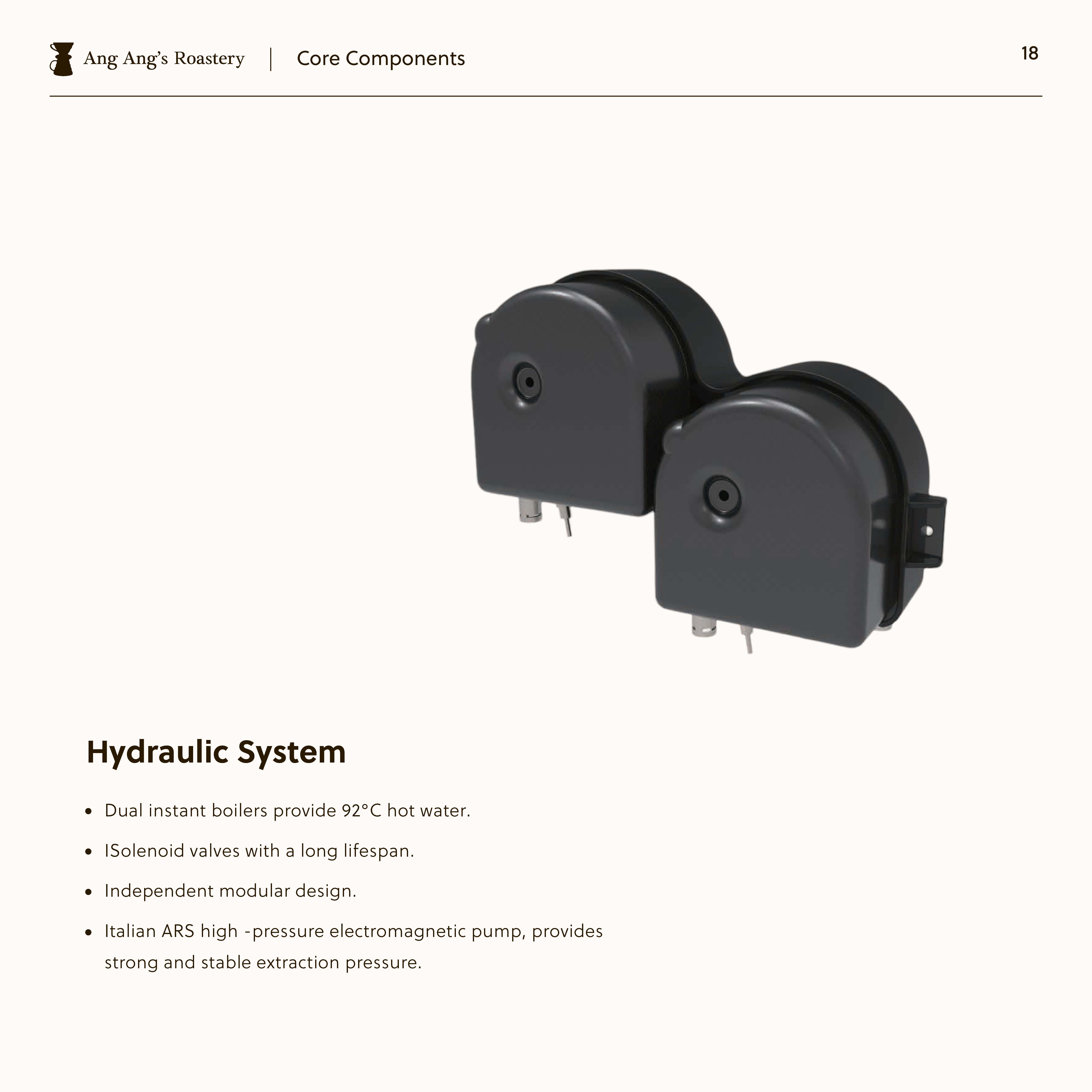

Dual Instant Boilers
Independent modules for water and steam with excellent thermal stability — no downtime between shots and milk prep.

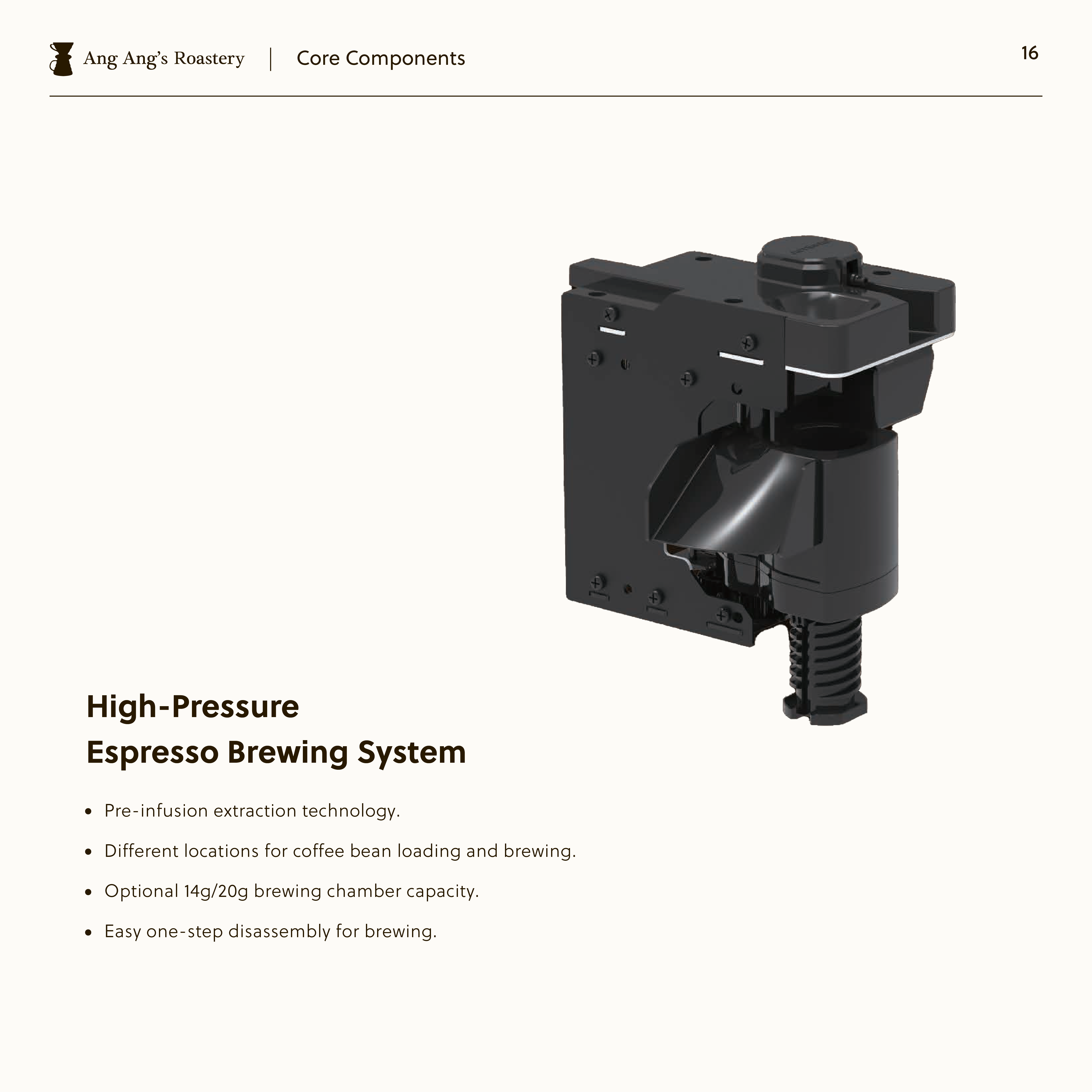

Espresso Brewer (14g or 20g Capacity)
Optional brewing chambers allow different doses for strength or yield preferences.

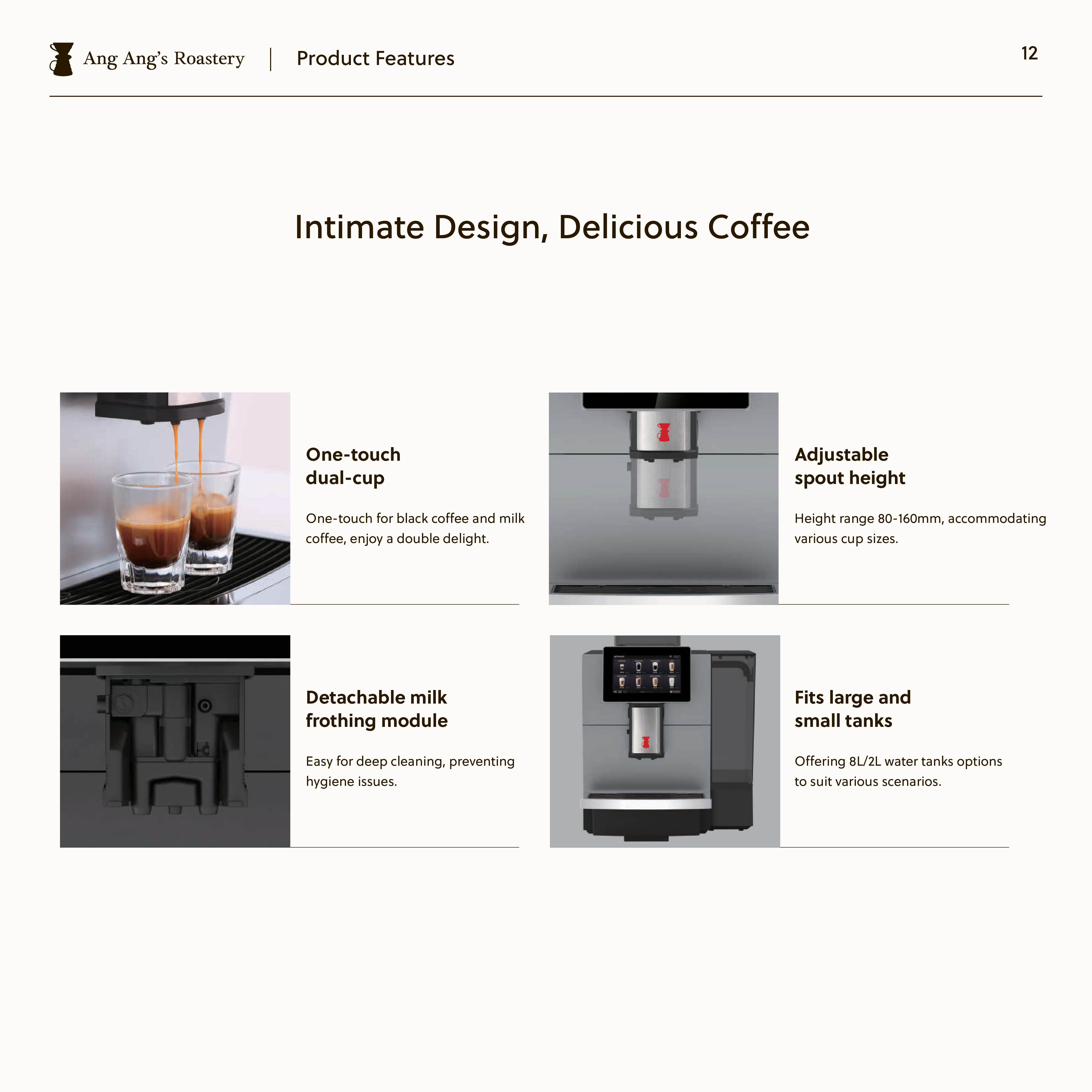

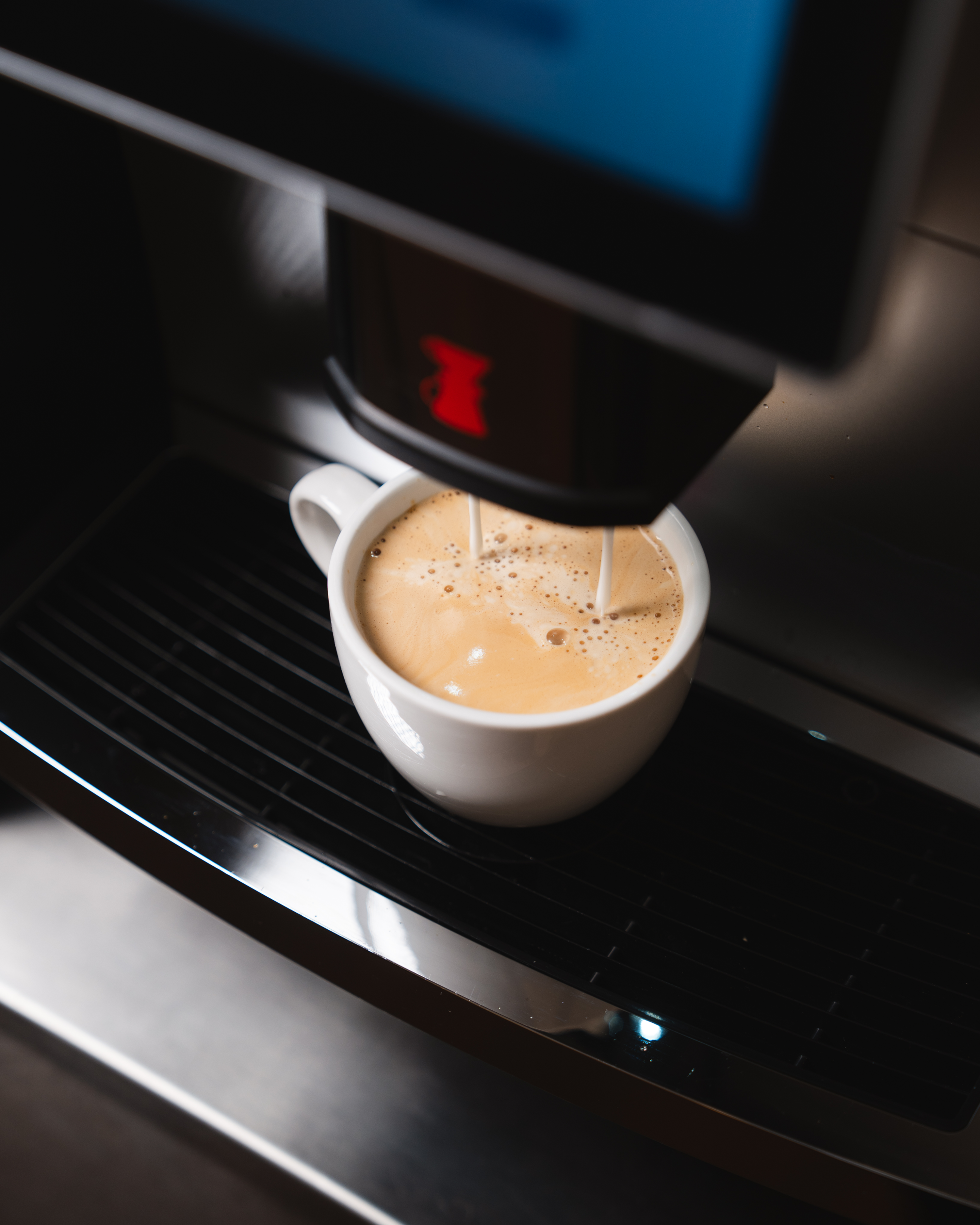

One-Touch Double Shot & Milk Beverages
Seamlessly brews both black and milk-based drinks in seconds.

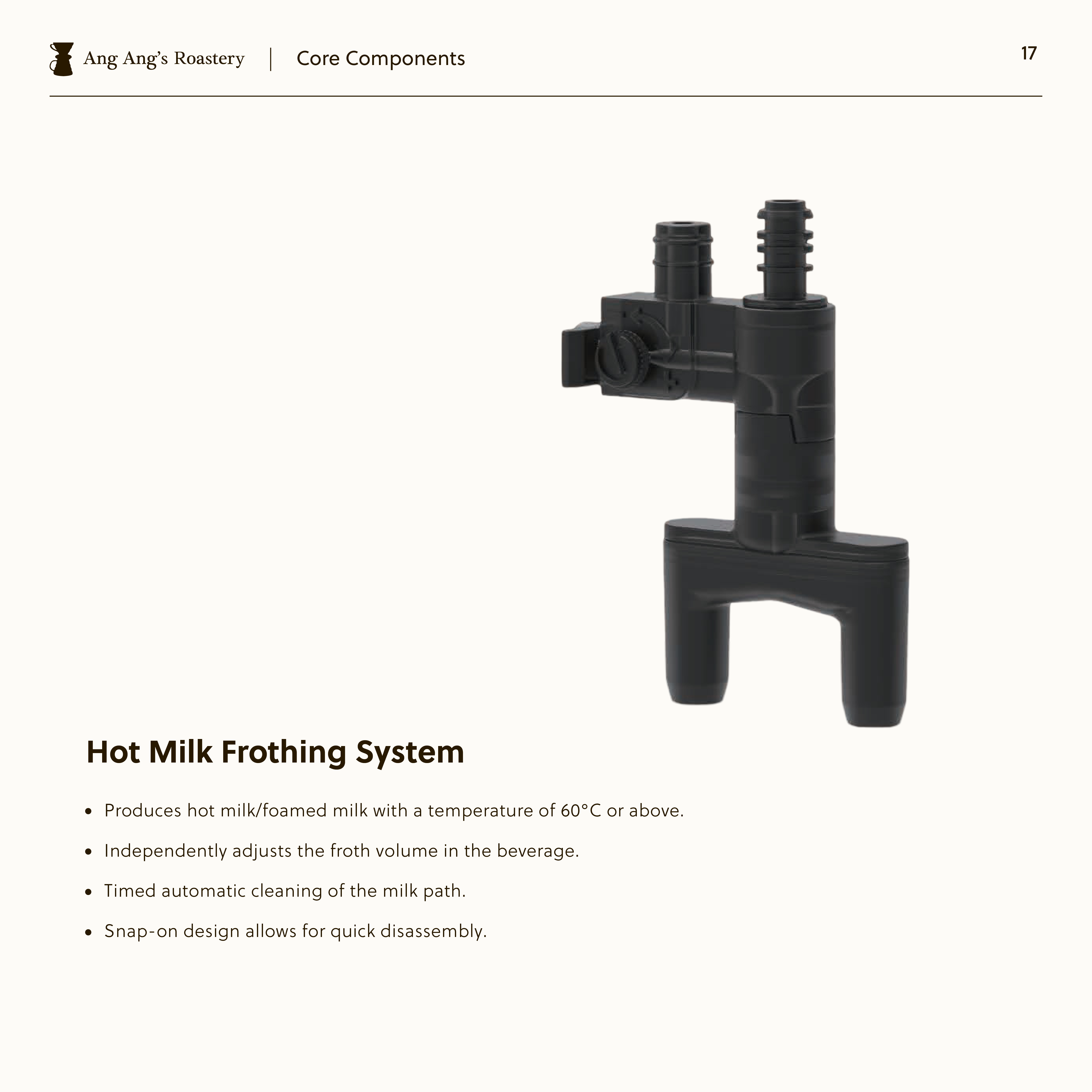

Fresh Milk Frothing System
Delivers silky microfoam at 60°C+ with automatic self-cleaning. Detachable for easy hygiene maintenance.

Adjustable Spout Height (80–160mm)
Accommodates a wide range of cup and takeaway sizes.

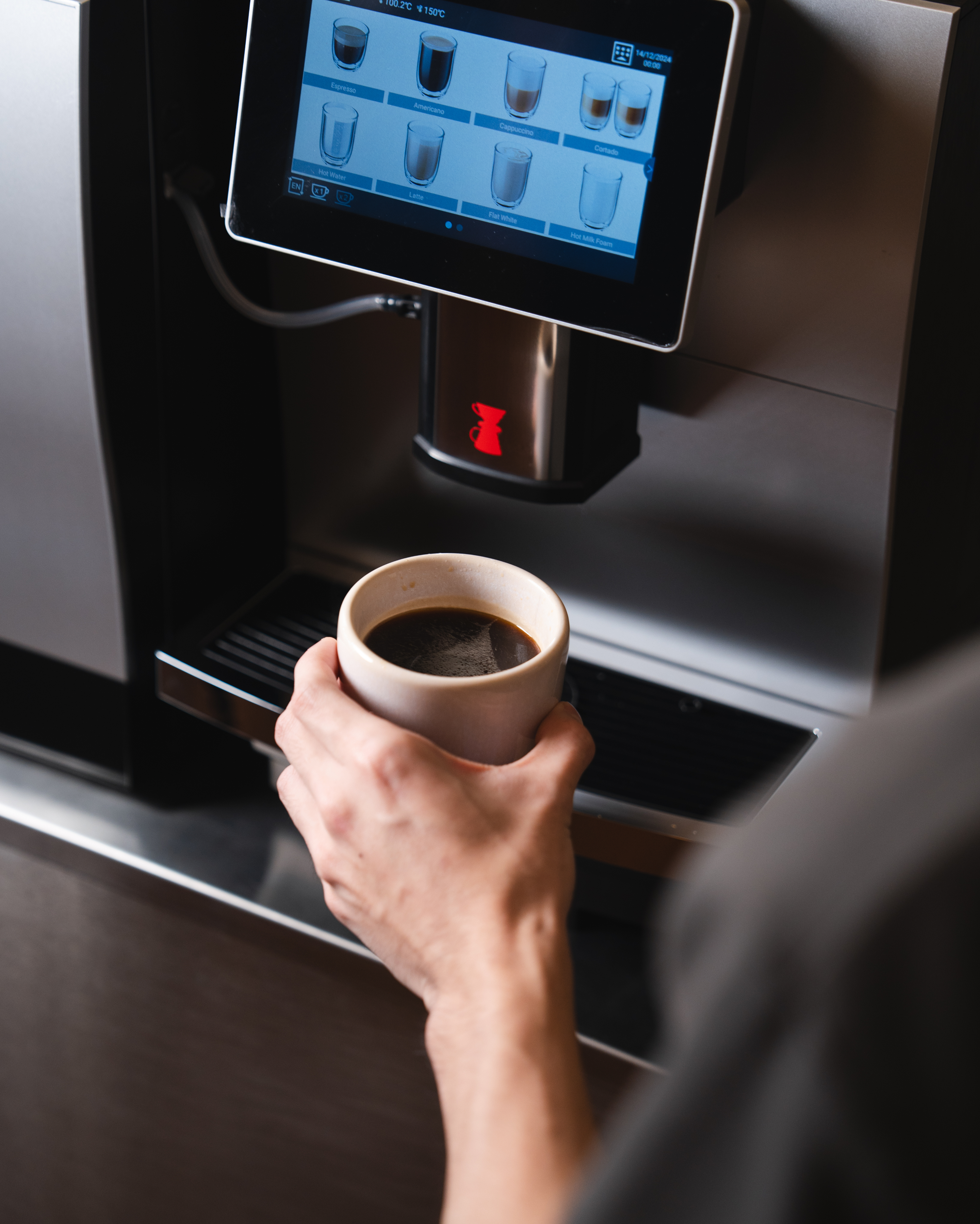

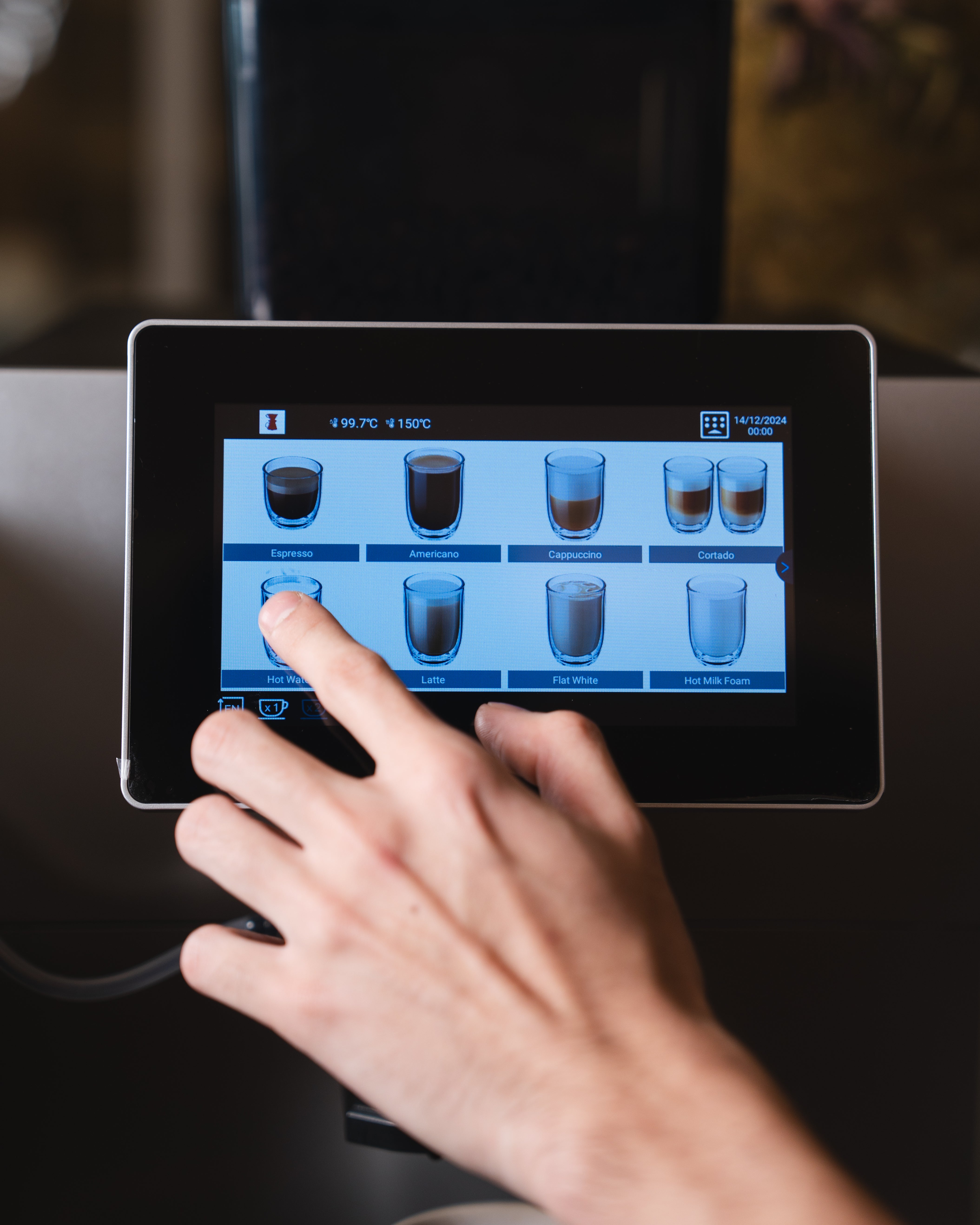

Touchscreen Interface (7”)
Intuitive controls with drink customization, maintenance alerts, and real-time diagnostics.

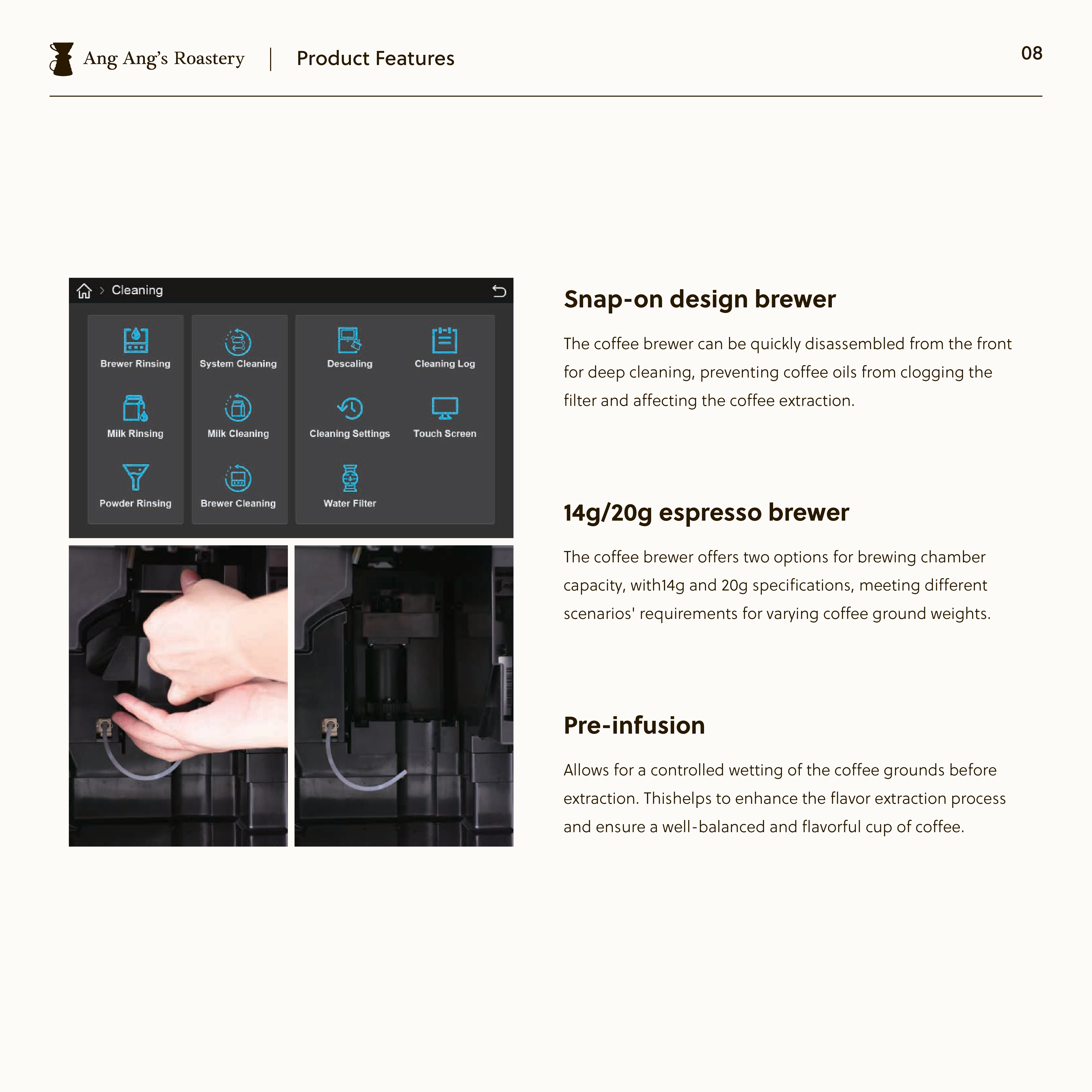

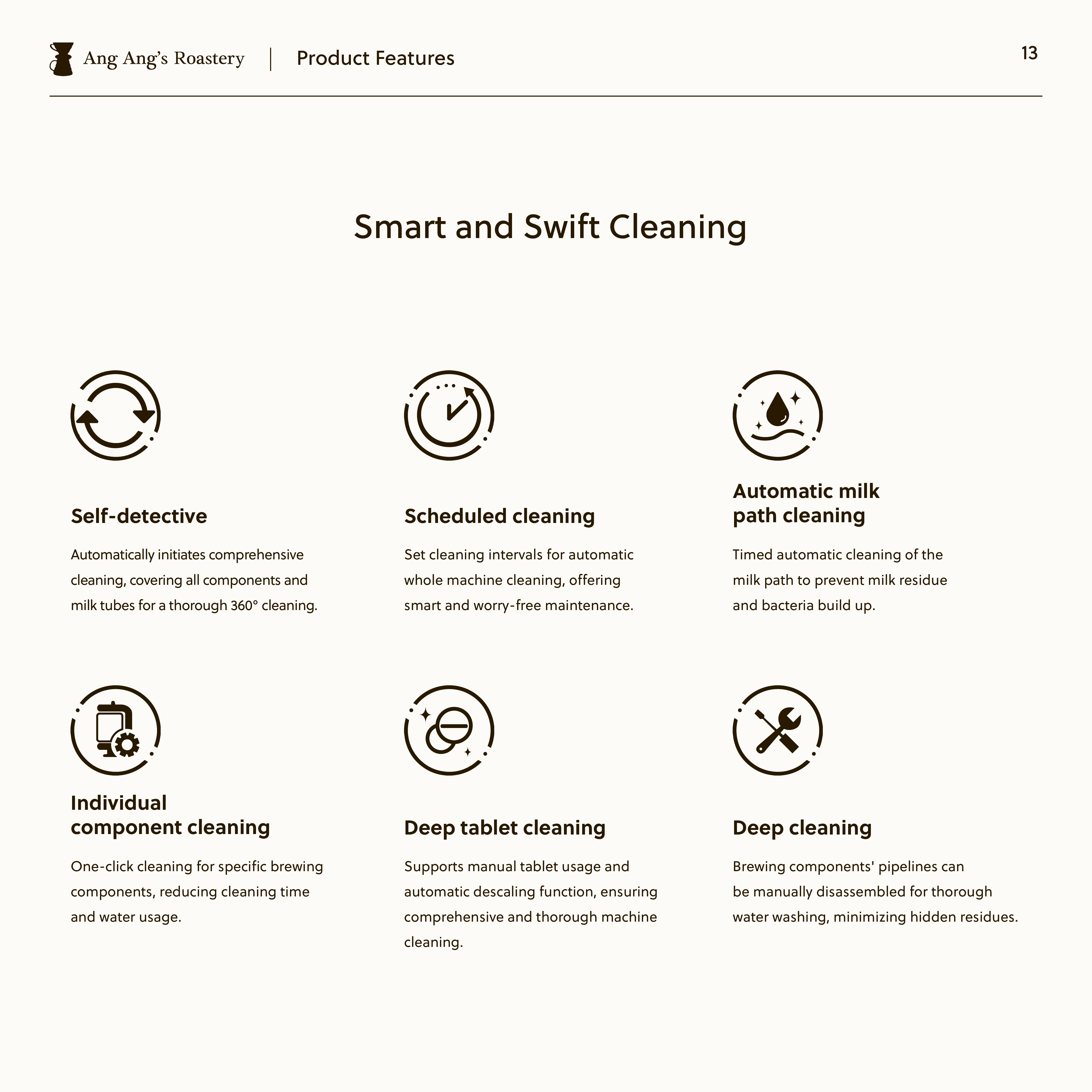

Smart Cleaning System
Automates daily, scheduled, or deep cleaning tasks — including specific internal components.

Remote Monitoring Ready
Supports WiFi or 4G modules for tracking sales data, machine health, and remote management.

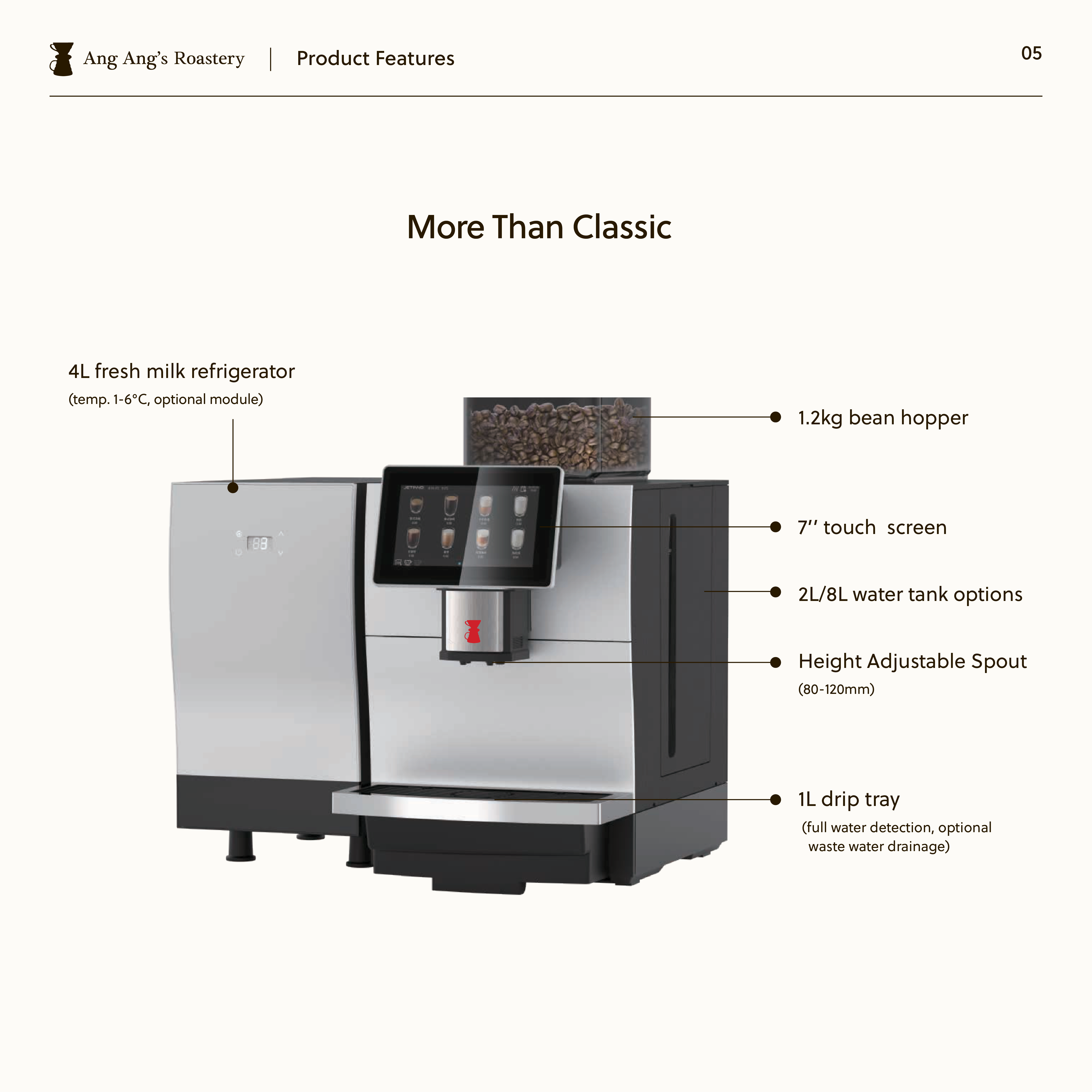

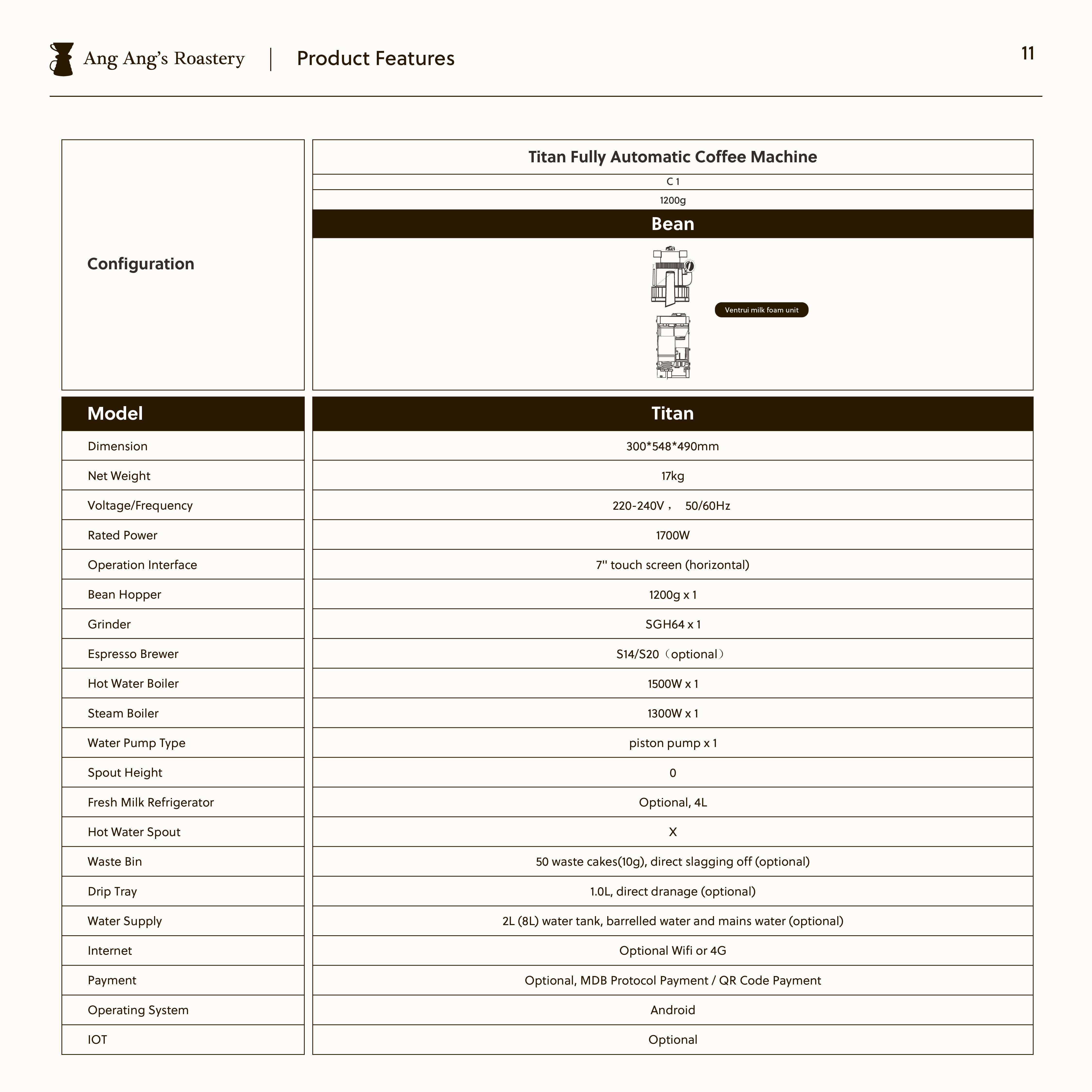

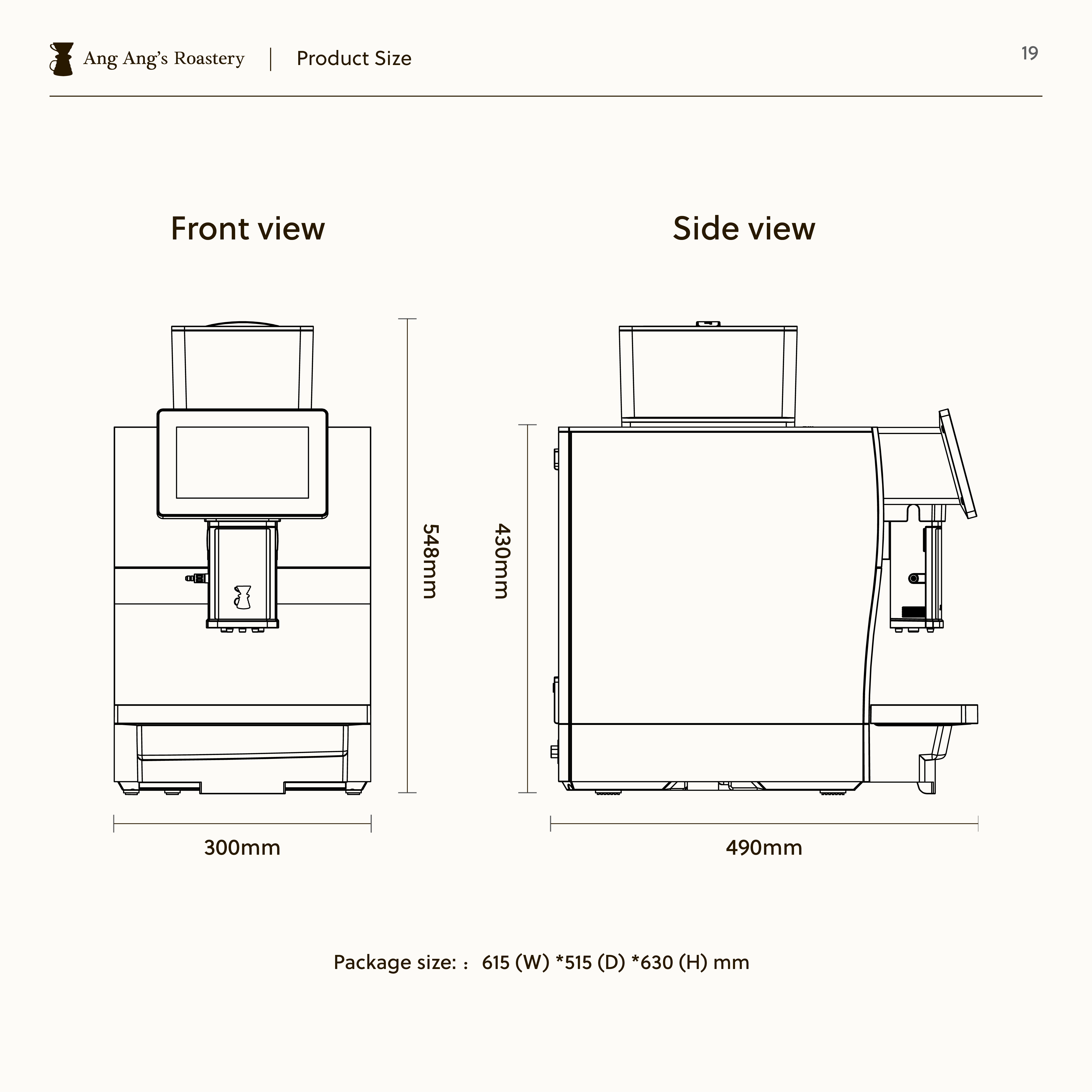

Dimension: 300mm (W) × 548mm (H) × 490mm (D)
Net Weight: 17 kg

Rated Power: 1700W
Voltage/Frequency: 220–240V, 50/60Hz
Interface: 7"" Touch Screen (horizontal)

Bean Hopper Capacity: 1200g
Grinder: SGH64 Flat Burrs (64mm, special steel)
Grind Settings: 11 adjustable levels
Brewer: S14 or optional S20 (14g / 20g capacity)
Water Tank Capacity: 2L (optional 8L or mains connection)
Drip Tray Capacity: 1L (with optional direct drainage)
Waste Bin Capacity: 50 cakes (10g each)

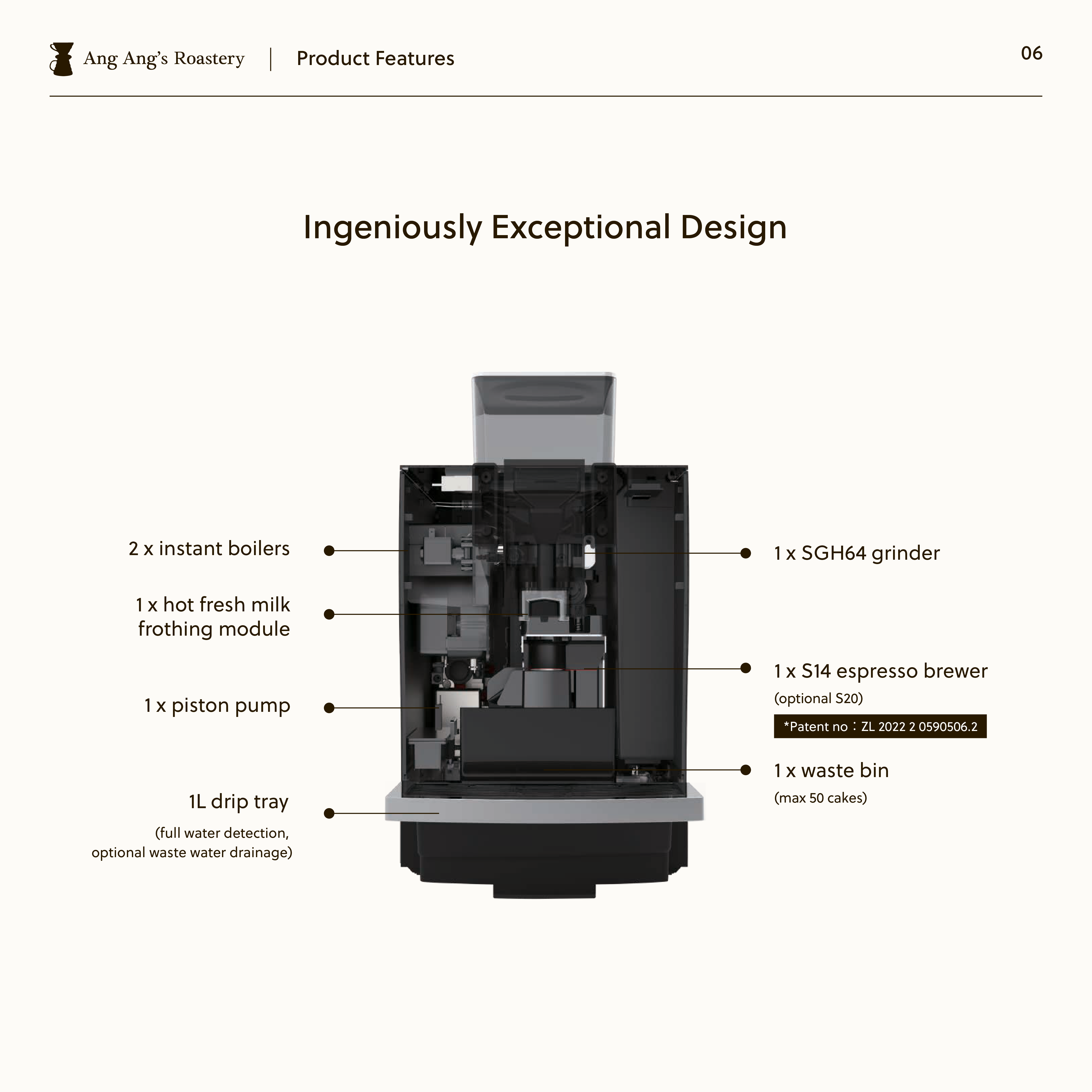

Pump Type: Piston pump ×1
Boiler: Dual thermoblock boilers (1500W + 1300W)
Spout Height Range: 80mm – 160mm (adjustable)
Optional Milk Frother: Venturi-based hot milk & froth module (detachable & auto-cleaning)

Internet Connectivity: Optional Wi-Fi / 4G
Mobile App Support: Android & iOS (settings, preferences, recipes)

Smart Cleaning Functions
Scheduled Auto Cleaning
Milk Path Auto Rinse
Manual Deep Cleaning (Tablet Compatible)
Component-Specific Clean Modes
Snap-On Detachable Brewer & Milk Frother

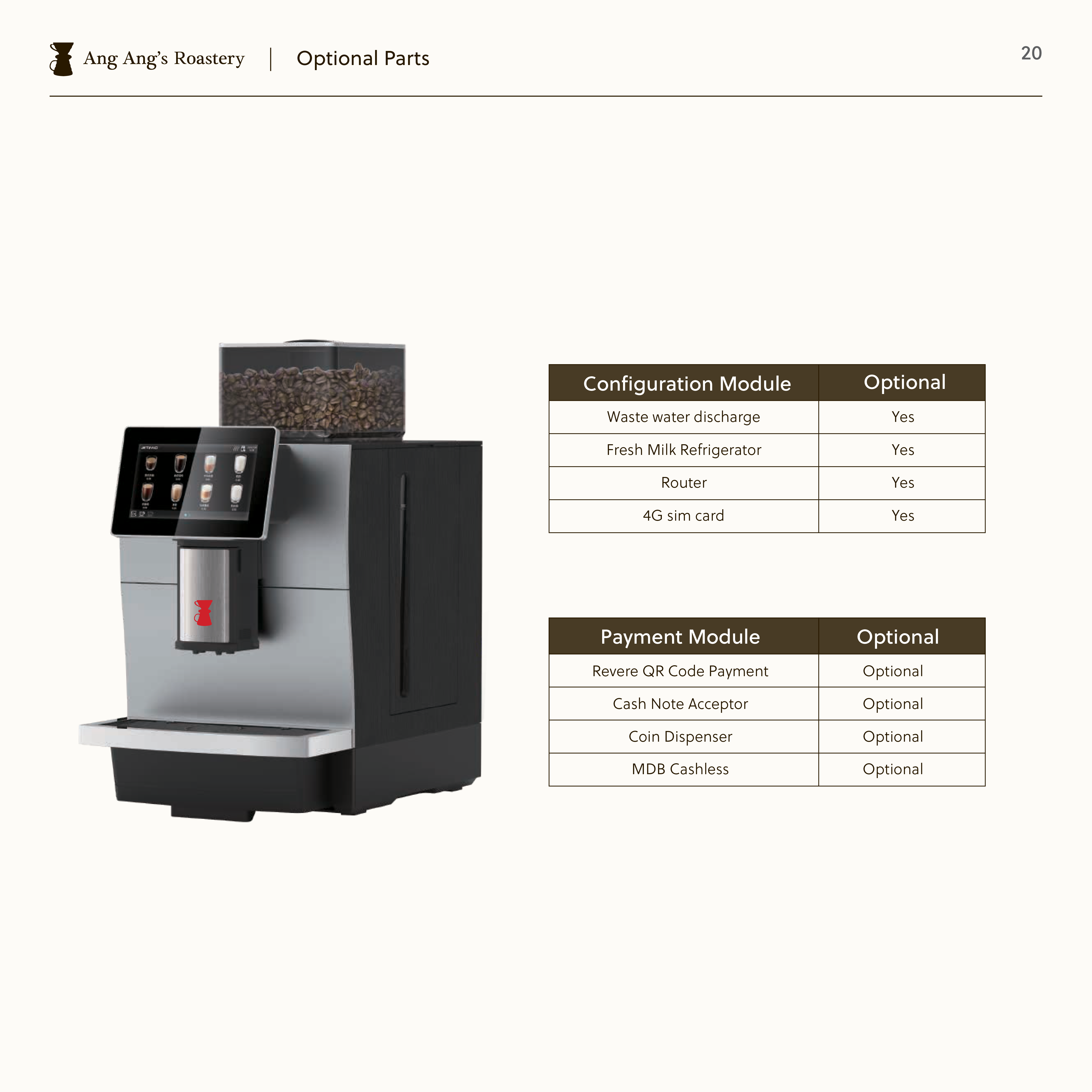

Optional Add-Ons:

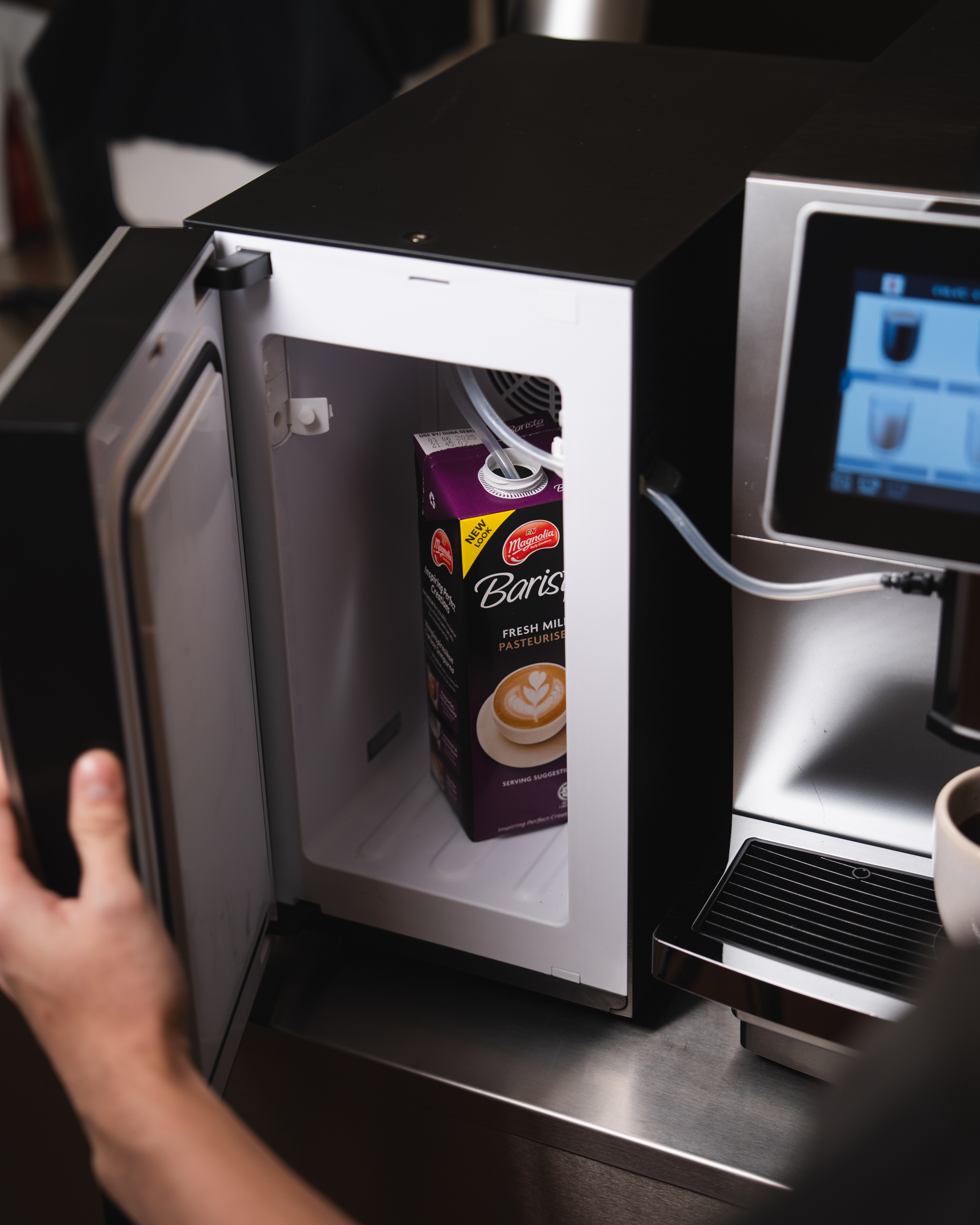

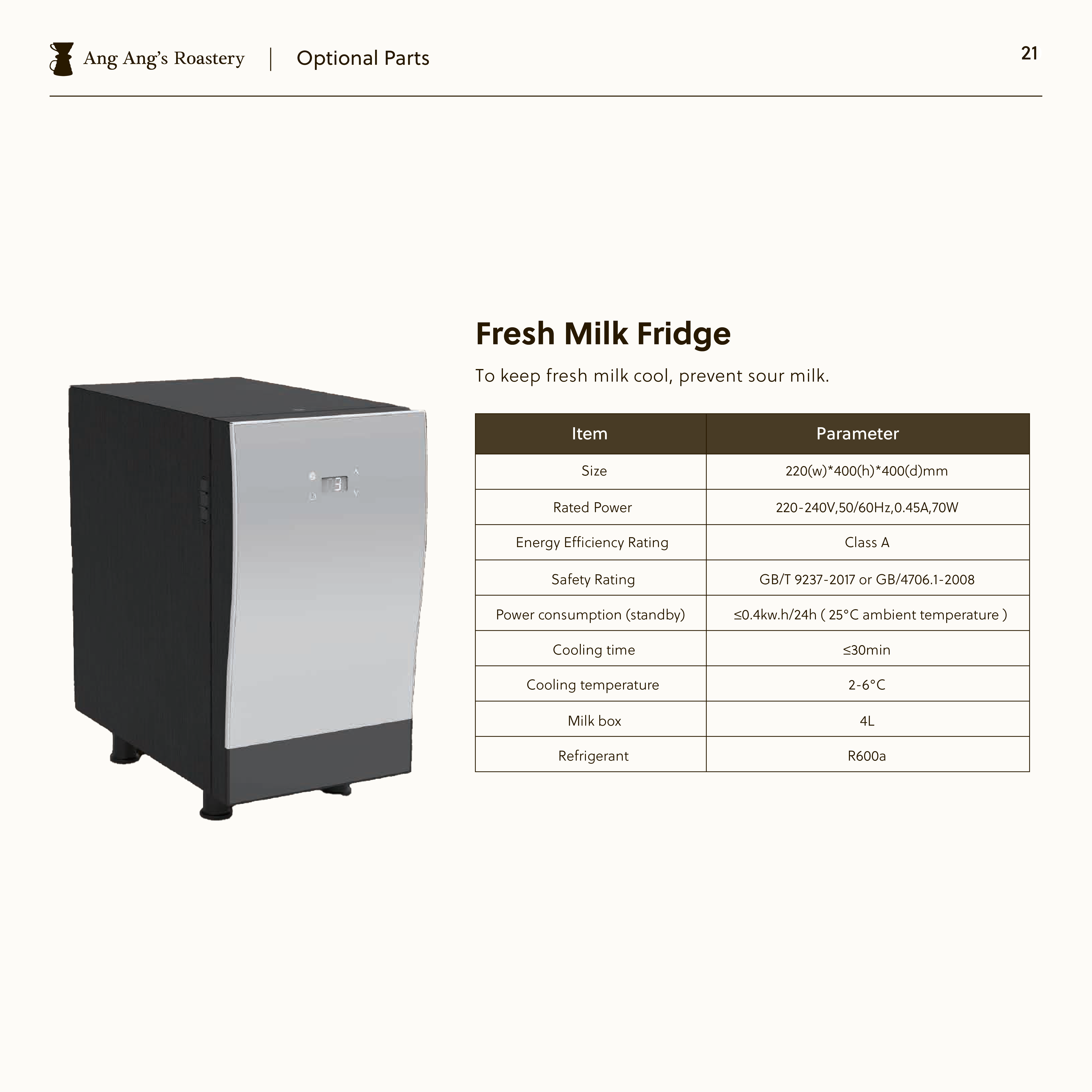

1. 4L Fresh Milk Refrigerator (1–6°C)
2. 8L Large Water Tank
3. Auto Wastewater Drainage

Warranty Period:
- 1 year from the date of purchase
- Free Onsite Setup & Training available within Malaysia (subject to location)
- Local service team for maintenance & parts replacement

Coverage:
- Manufacturer defects in materials and workmanship
- Mechanical and electrical components (grinder, brewer, milk frother)

Exclusions:
- Damage from misuse, accidents, or non-recommended cleaning procedures
- Consumables such as gaskets, tubes, and milk parts

To register your product or submit a claim, contact:
📧 angangroastery@gmail.com

Is the Titan suitable for cafés or only offices?

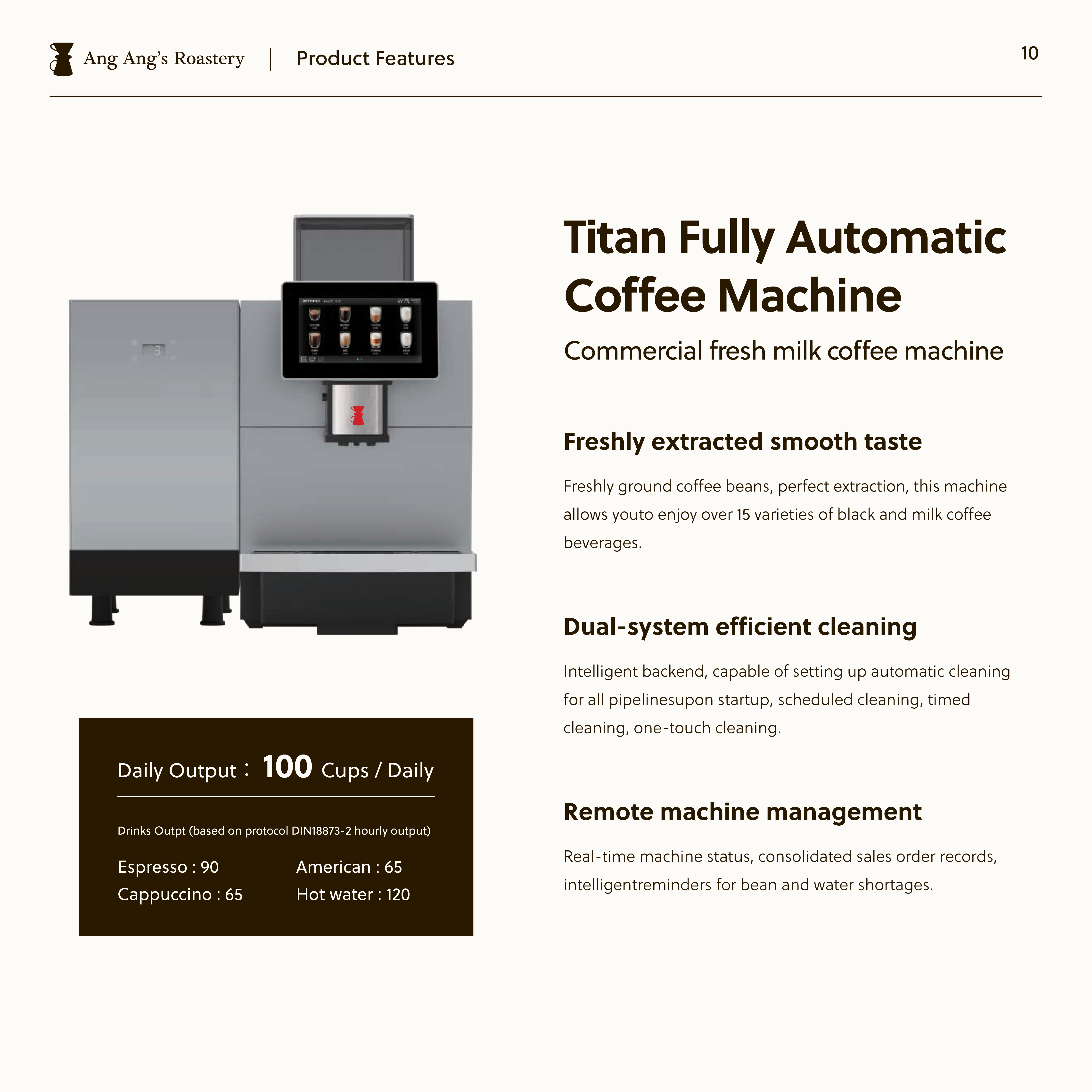

Titan is designed for both — with a 100-cup daily output capacity and commercial-grade components, it performs in busy cafés, hotel lounges, and corporate offices.

Can I use non-dairy milk?
Yes, it supports fresh milk alternatives like oat or soy, but we recommend a flush after each session to avoid residue buildup.

Is water connection required?
Not necessarily. Titan supports a 2L or 8L tank, and can also be connected directly to a water source.

What’s the difference between Tiny and Titan?
Tiny is compact and home-friendly; Titan is a high-capacity machine built for commercial volume and greater drink variety.

How often does it need cleaning?
AYou can set it to clean automatically on a schedule — daily, weekly, or after every use. Manual cleaning is also simple and modular.
